NVR

Video Format

H.264+

IP Video Input

16CH Wireless

Video Output

HDMI Up to 4K

Audio Output

Support

Max Recording Resolution

Up to 8M

Max Playback Resolution

Up to 8M

Max Playback Channel

4CH

Max Playback Capacity

4CH 5MP/2CH 8MP

Hard Drive

HDD

1 SATA interface

HDD Capacity

Up to 8TB capacity(2.5&3.5 inches)

External Interface

Network Interface

RJ45x1(10/100M)

Wireless antenna

3 Ports(2.4G&5.8G dual-band，IEEE802.11b/g/n/ac)

USB

USB2.0x2

General

Housing

Metal for mainpart

Operating Power

DC12V

Power Consumption

6 W (Without HDD)

Working Temperature

14 °F ~ 131 °F/-10 °C ~ 55 °C

Dimensions (W X H X D)

260 X 245 X 47 mm

Weight (Without Hard Disk)

760 g (Without HDD)

Camera

Sensor

1/3" CMOS

Focal Length

4 mm

Aperture

F2.0

Optical Field of View

102.9° diagonal, 86.4° horizontal, 46.1° vertical

Minimum Illumination

0.1 lux

IR distance

Night visibility up to 15m , 10M Color Nightvision

Audio

Input

Built-in microphone

Output

Built-in speaker

Two-way Audio

Full duplex

Audio Compressing

AAC

Video

Video Compressing

H.264, H.265

Lighting Frequency

50 Hz, 60 Hz

Frame Rate

15 fps

Maximum Resolution

2560 × 1440

Light Source For Night Vision

White light or infrared LED switchable

Network

Wireless Standard

2.4 GHz Wi-Fi (IEEE 802.11 b/g/n)

Protocols Supported

TCP/IP, UDP/IP, DHCP, RTMP, MUTP

IP Address Type

Dynamic IP address

Recording

Recording Method

Alarm triggered recording, and manual recording

Video Storage

Cloud storage, local Micro SD card (up to 128 GB), and mobile phone memory

Function

AI Function

Human detection

Wake-up Method

PIR body induction wake-up and remote wake-up

Alarm Notification

Alarm push by mobile app, white LED flashing and alarm sound warning

Indicator

RGB tri-color LED

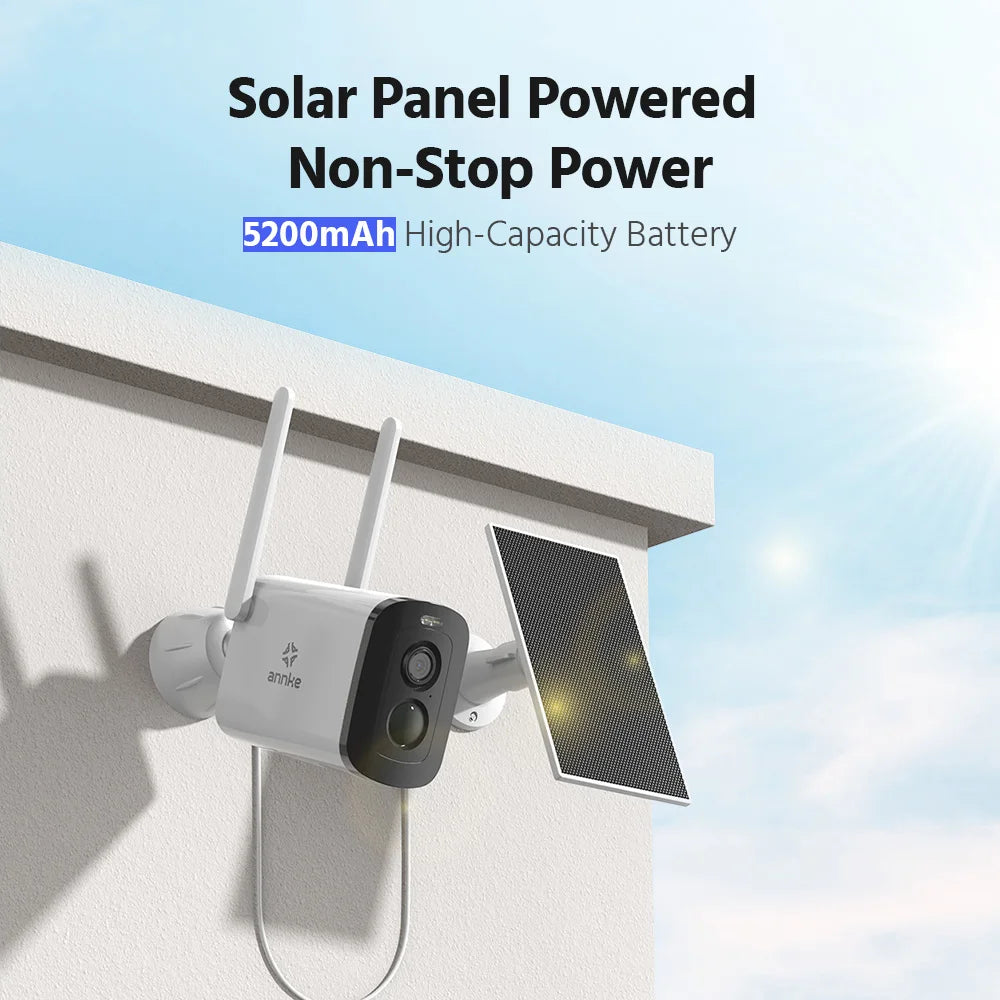

Battery

Capacity

5200 mAh

Removability

Unremovable

Charging Voltage

5 V ±5%

Charing Current

1.5 A

Protection

Over-charge, over-discharge, over-current, short circuit and charging protection at high and low temperature

Power Consumption

Standby

1.48 mW

Daytime Working

0.95 W

Nighttime Working

1.54W

Interface

Power

TYPE-C

Storage

Micro SD card

Key

Power key and reset key

Installation

Installation Method

Wall mount, ceiling mount,desktop

Bracket Type

1/4'' universal screw hole

Environment

Dustproof and Waterproof

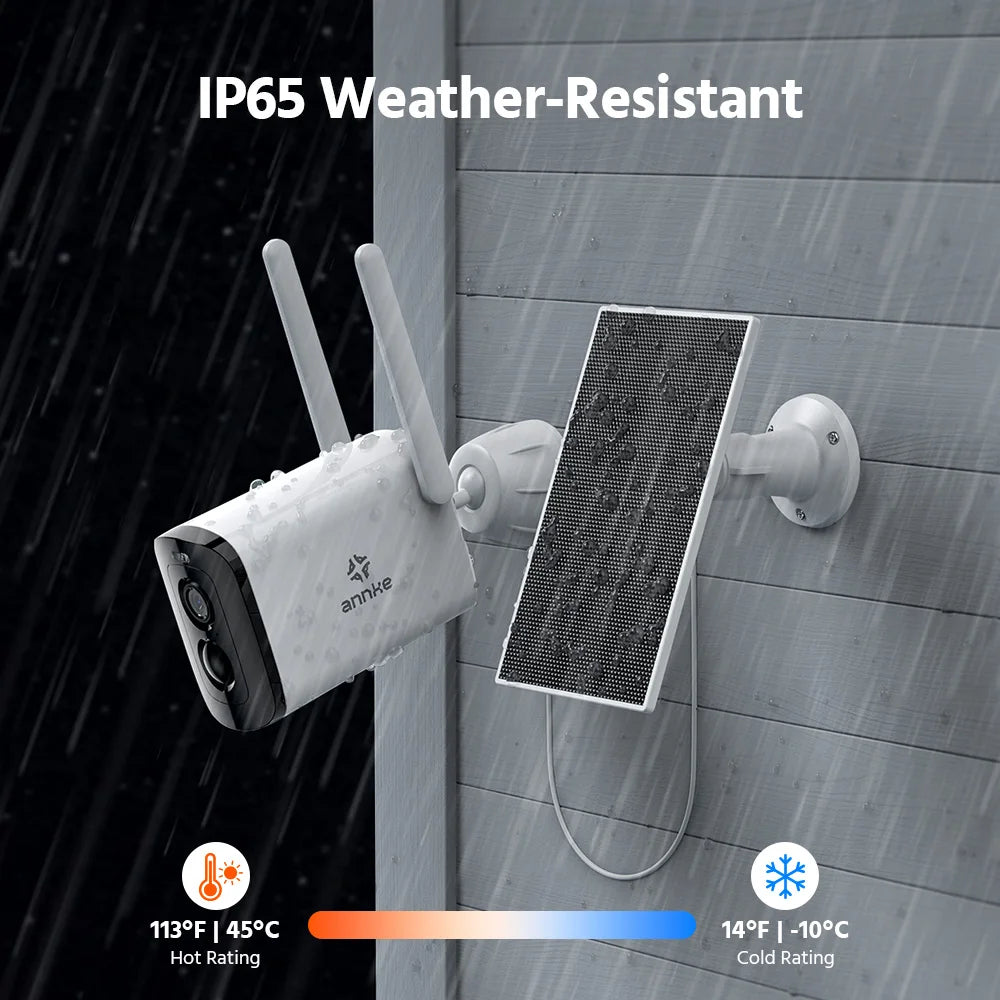

IP65

Operating Temperature

-10℃~ 45℃

Storage Temperature

-20℃~ 60℃

Prodoct Dimension

Dimension

54(L)mm x 118(W)mm x 81mm(H) (without bracket)

Bare Weight

330 g

Material

ABS + PC

Color

White
