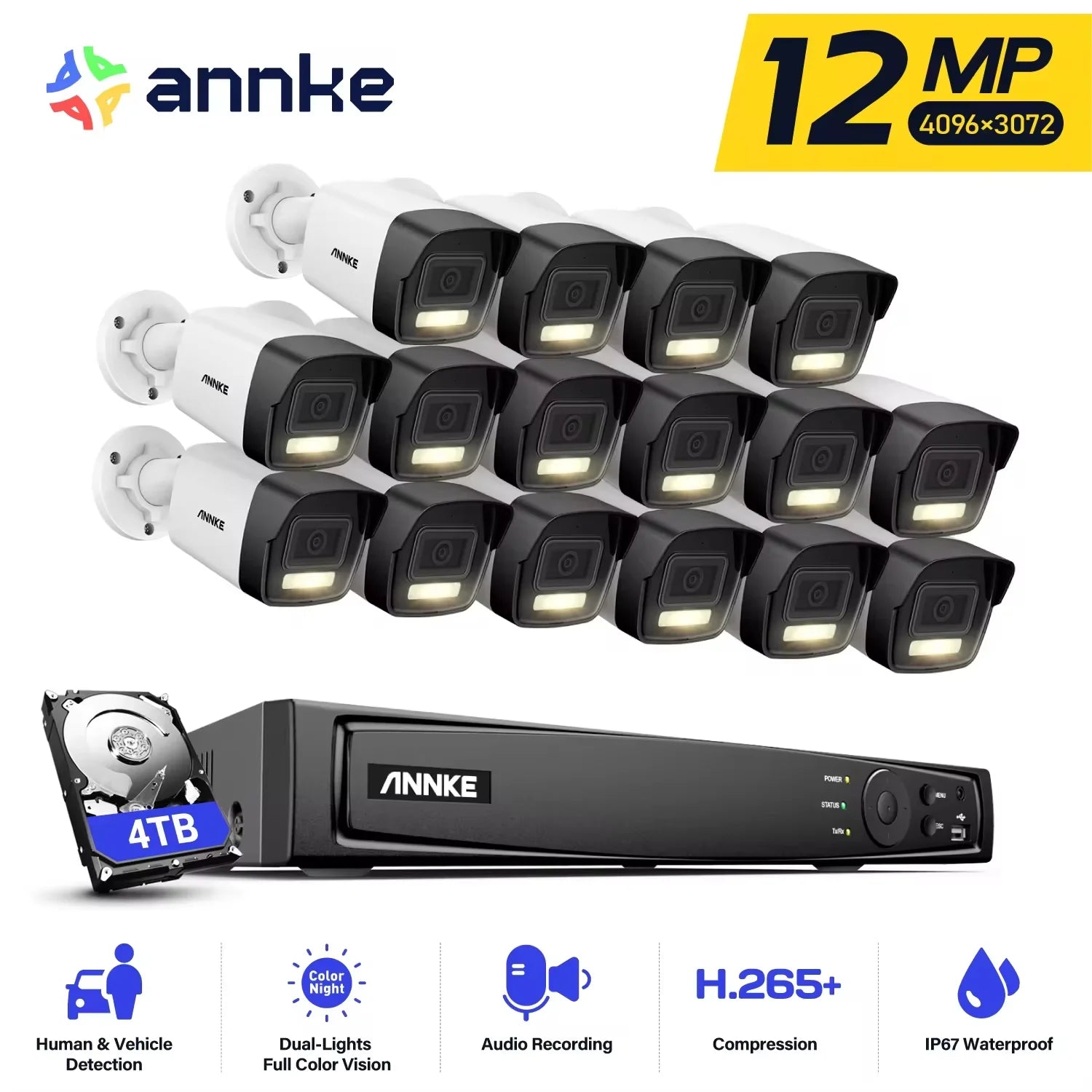

Annke 16CH NVR 12MP HD IP Security Camera Poe 6K Dual Light Audio Fixed Video Surveillance Human Vehicle Detection CCTV System
Annke 16CH NVR 12MP HD IP Security Camera Poe 6K Dual Light Audio Fixed Video Surveillance Human Vehicle Detection CCTV System
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: ANNKE
Cable Length: 30m,18m
Certification: CE,EAC,EPA
Hign-concerned Chemical: None
Model Number: N46PCK-I91DD*16
Origin: Mainland China
PCS of Camera: 16pcs
Resolution: 8MP
Smart home platform: alexa
TV System: NTSC,PAL
Video Input: 16 Channel
NVR Key features
· Live view, recording&playback up to 8 MP resolution
· Up to 16 channel IP cameras can be connected with built-in PoE inputs
· Advanced H.265+ Video Compression
· Supports iPhone、iPad、Android mobile remote monitoring
· Connectable to the third-party network cameras
· HDMI Video output at up to 4K (3840 × 2160) resolution
· 2 SATA interfaces connectable for recording and backup
· Annke Vision for easy remote view
· Support 4-ch Human and vehicle targets detection
Camera Key features

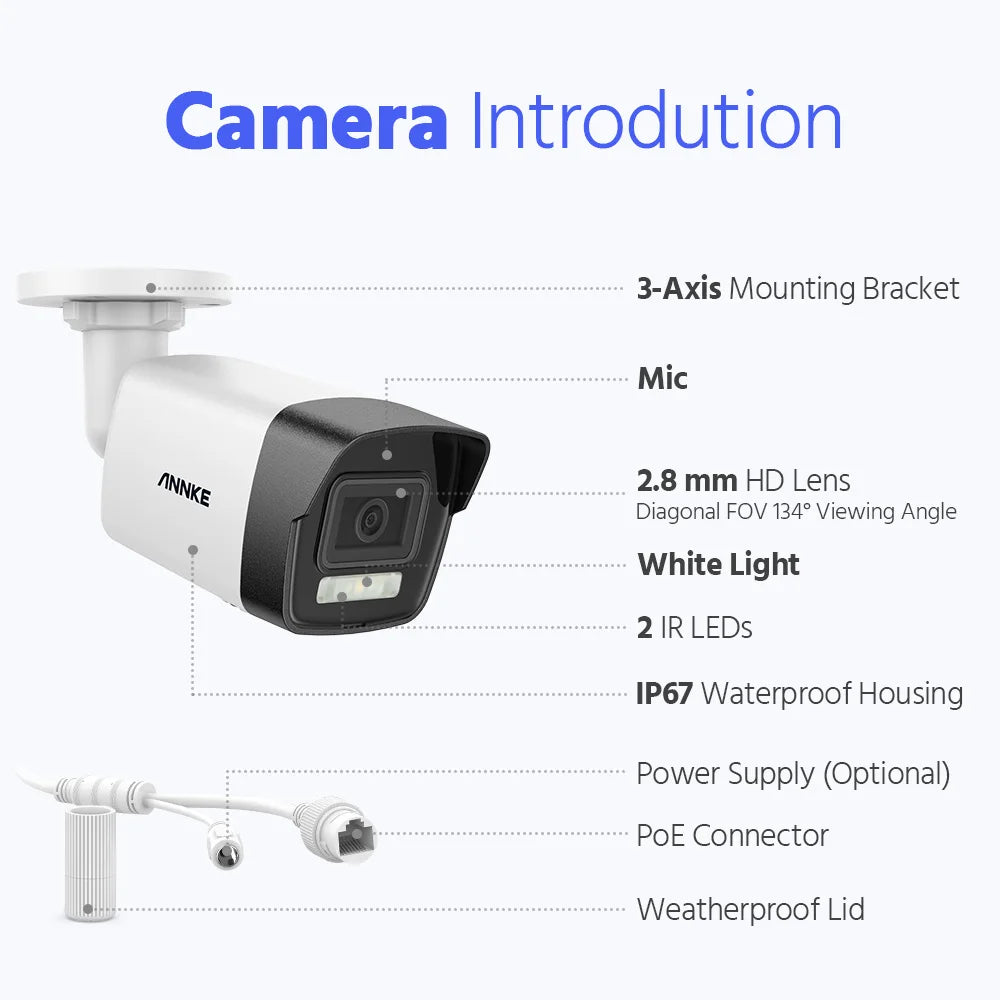

★ 12MP smart dual light bullet network camera
★ 2.8mm lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Built-in microphone for real-time audio security
★ Support on-board storage up to 512 GB (SD card slot)
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V
Packaging Contents
1 x NVR
1 x USB Mouse
1 x Power Adapter
1 x 1 m Network cable
1 x 1.8 m HDMI cable
16 x Camera
8 x 60 ft/18 m Ethernet Cable
8 x 100 ft/30 m Ethernet Cable
8 x Mounting Screw Bag
1 x User Manual

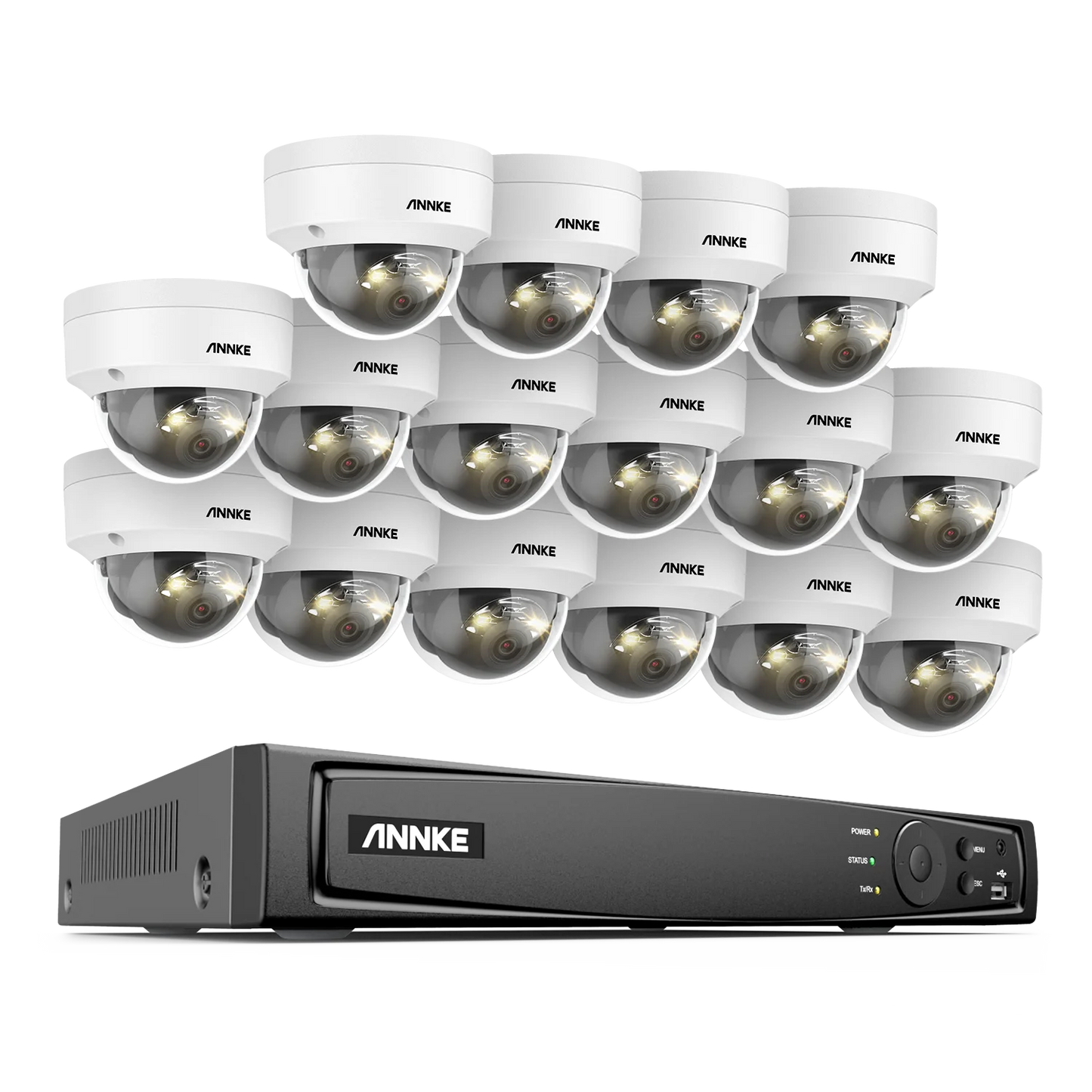

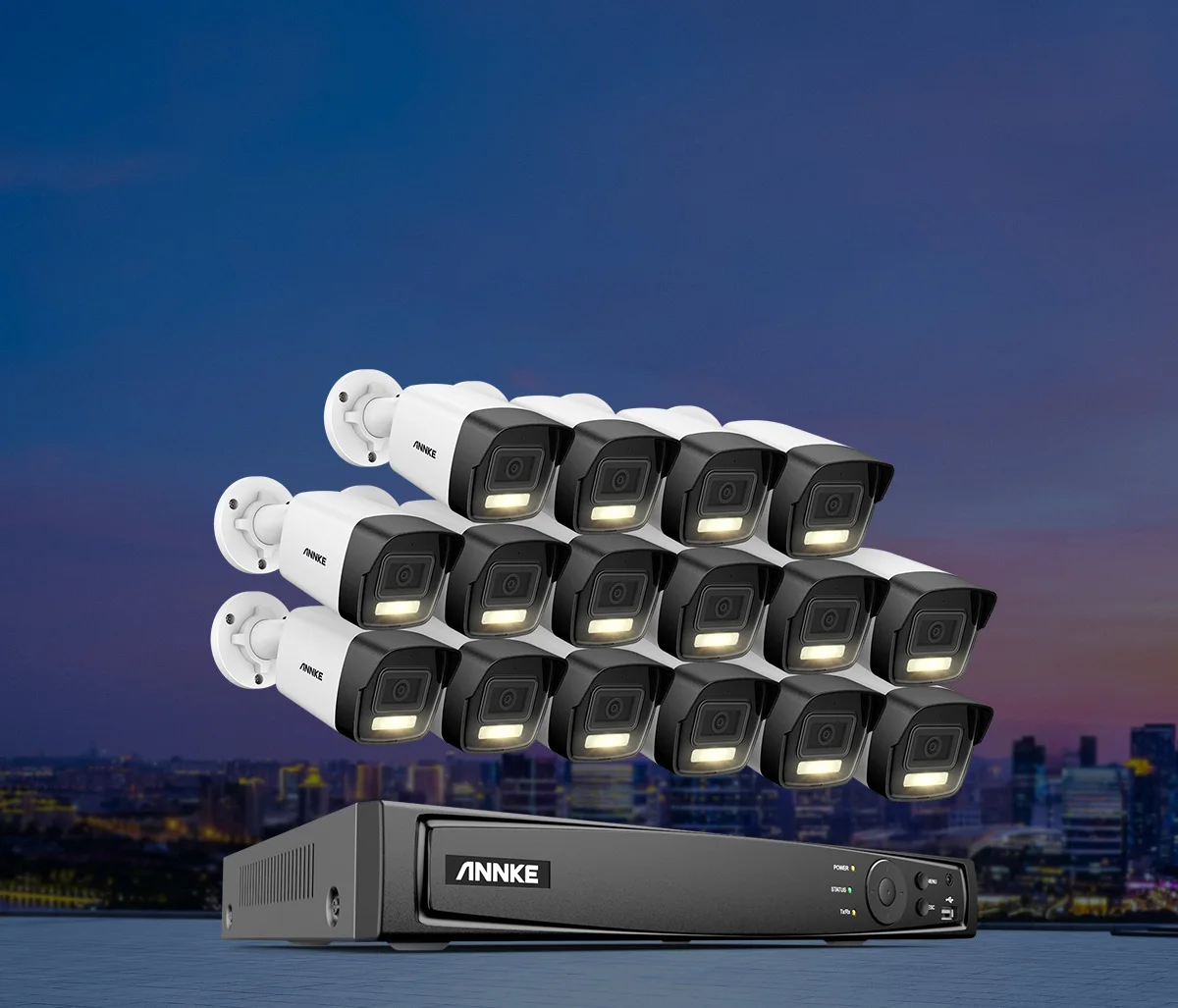

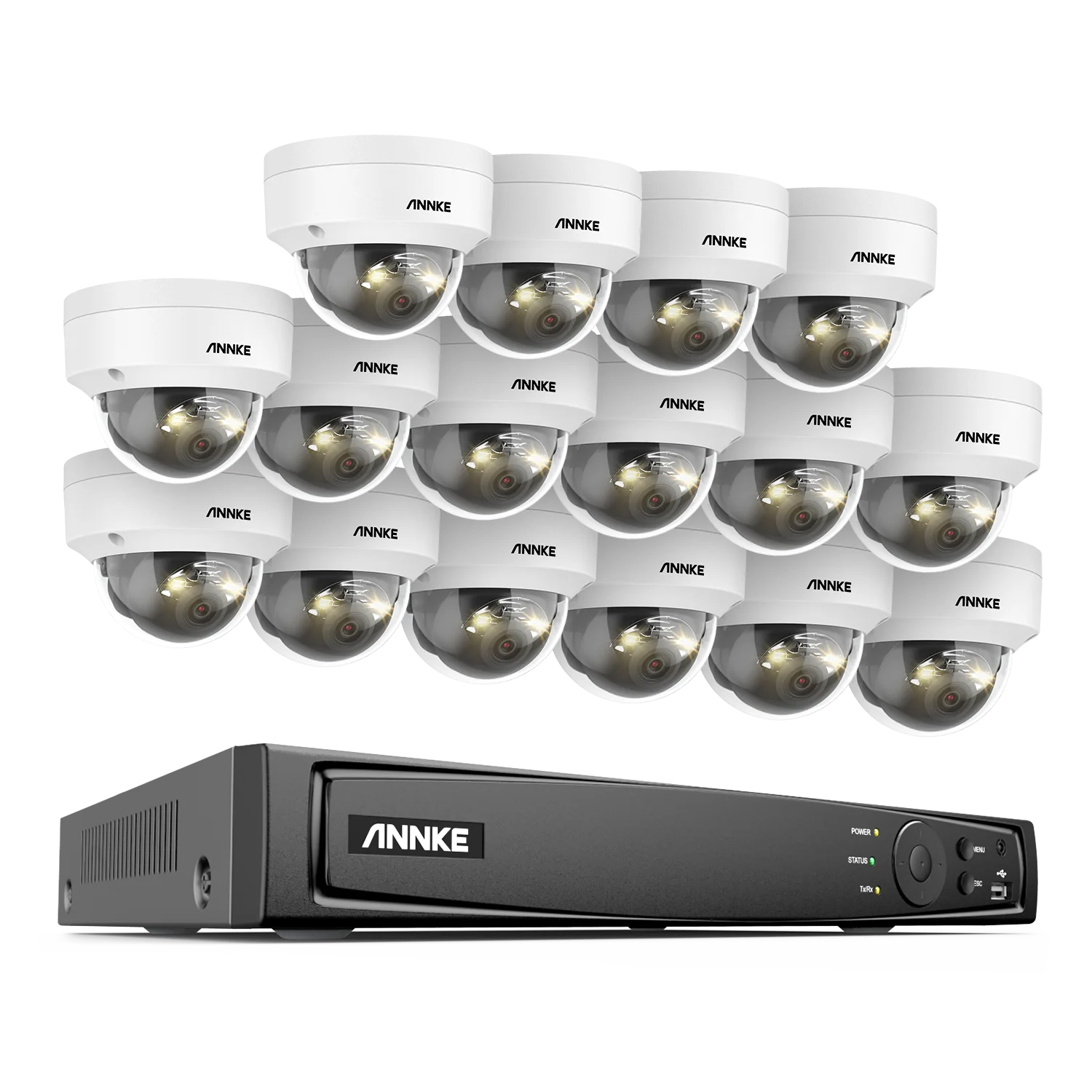

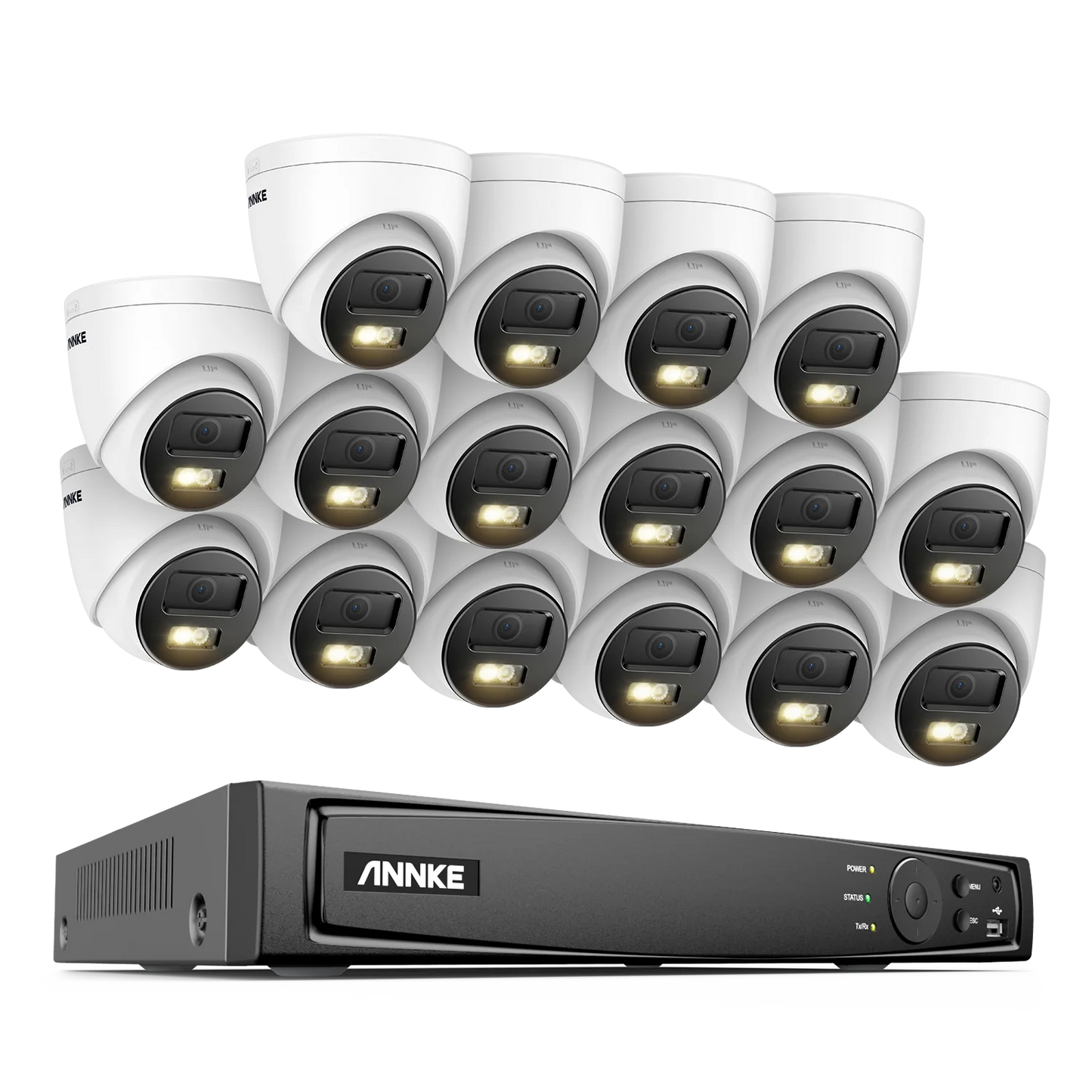

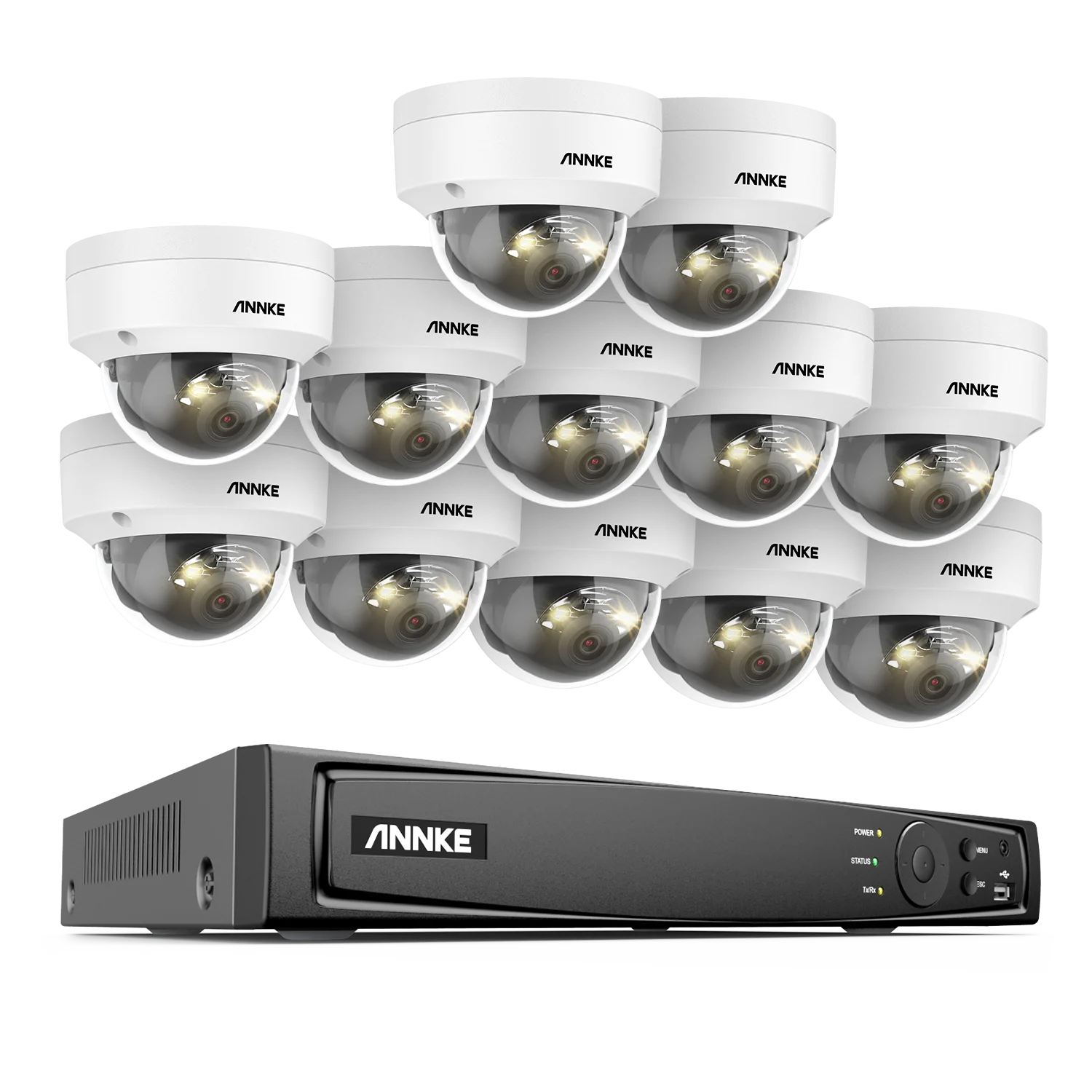

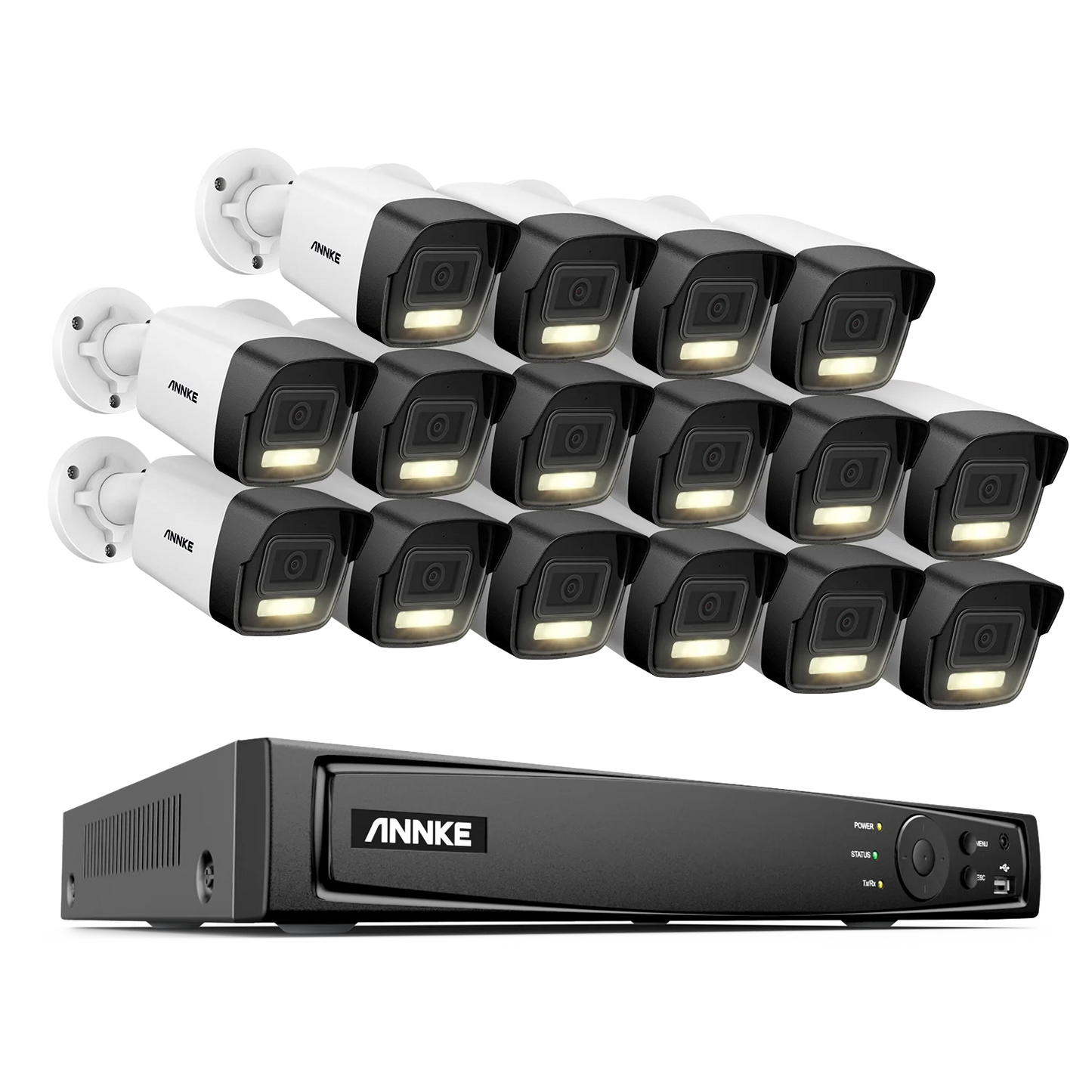

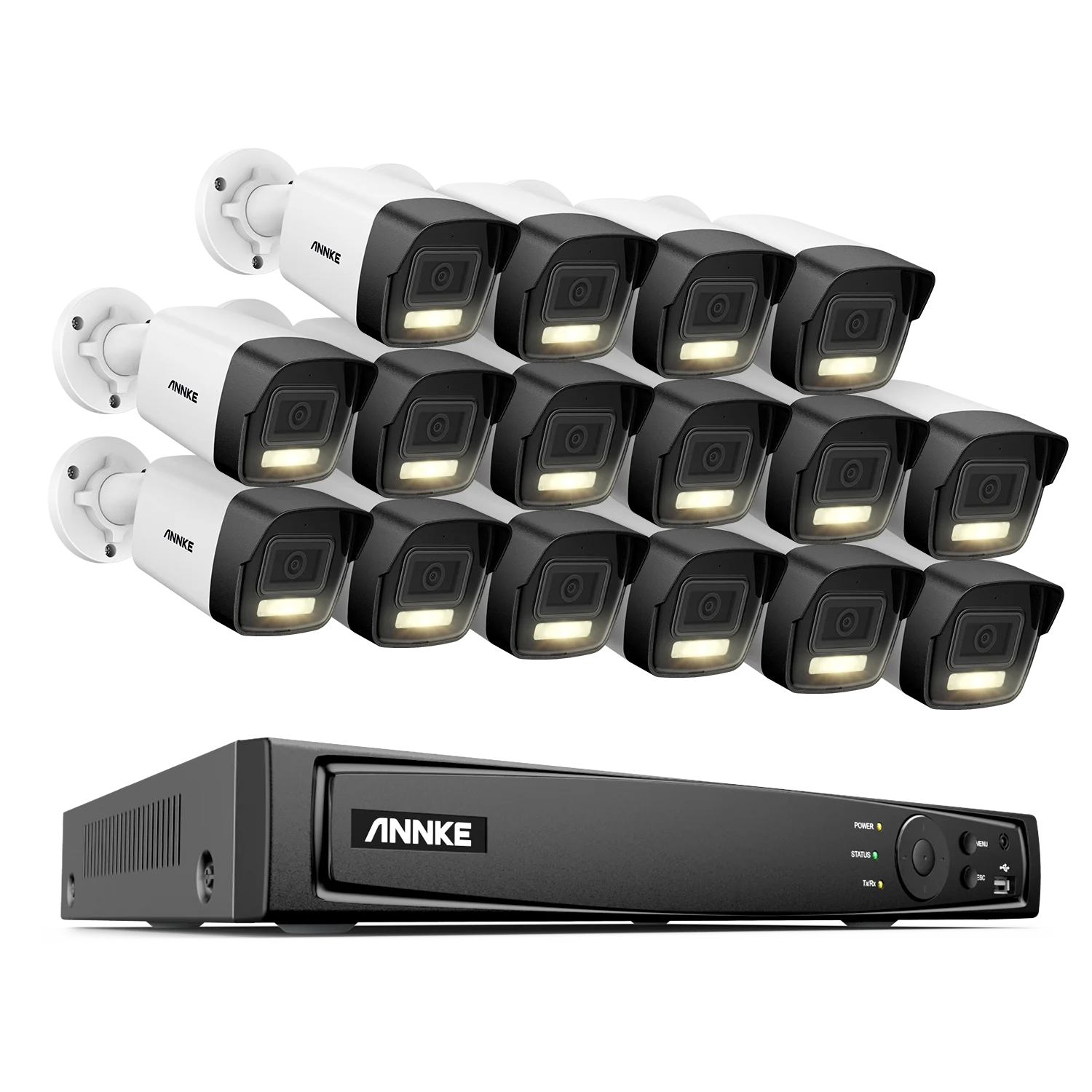

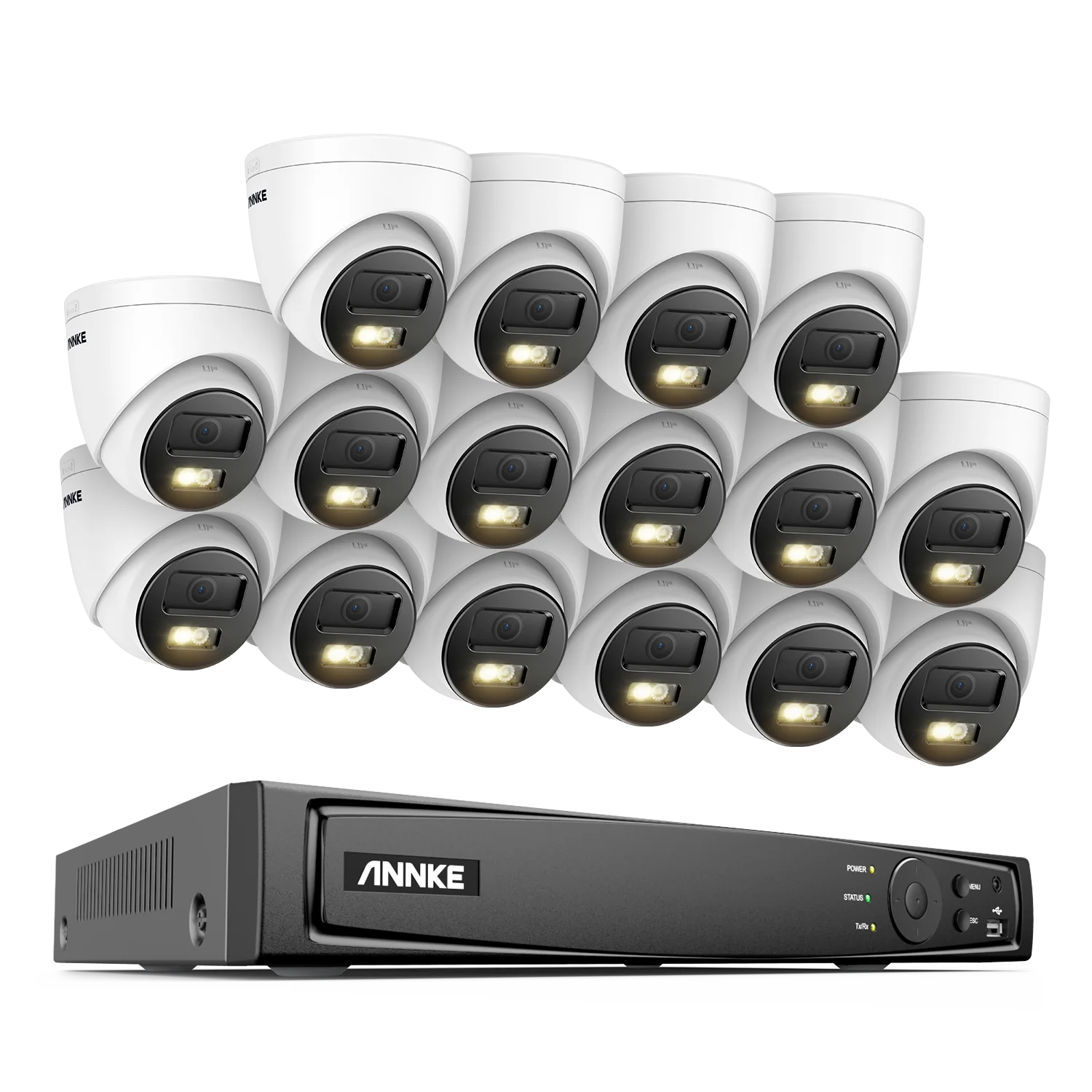

16CH NVR 16Pcs Camera

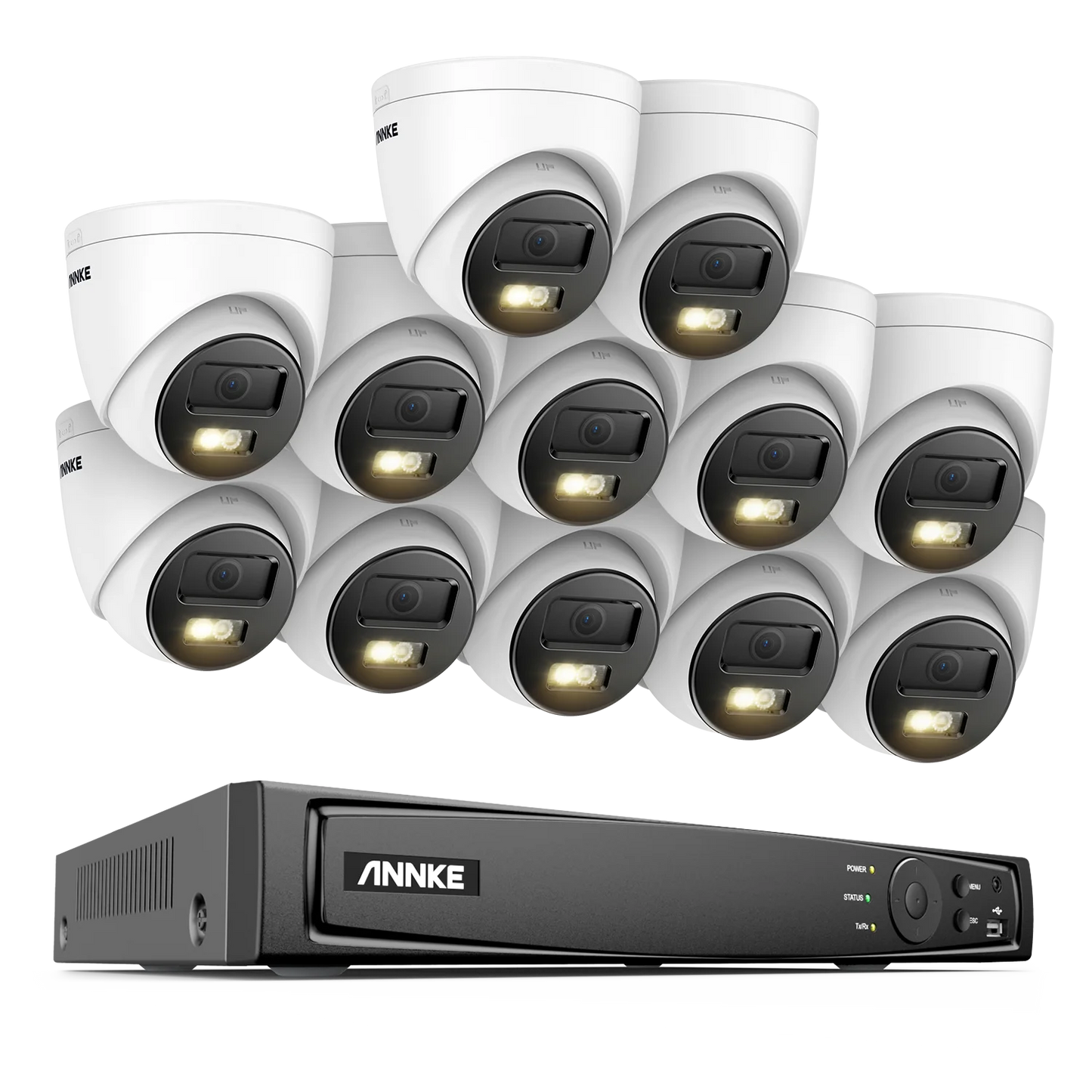

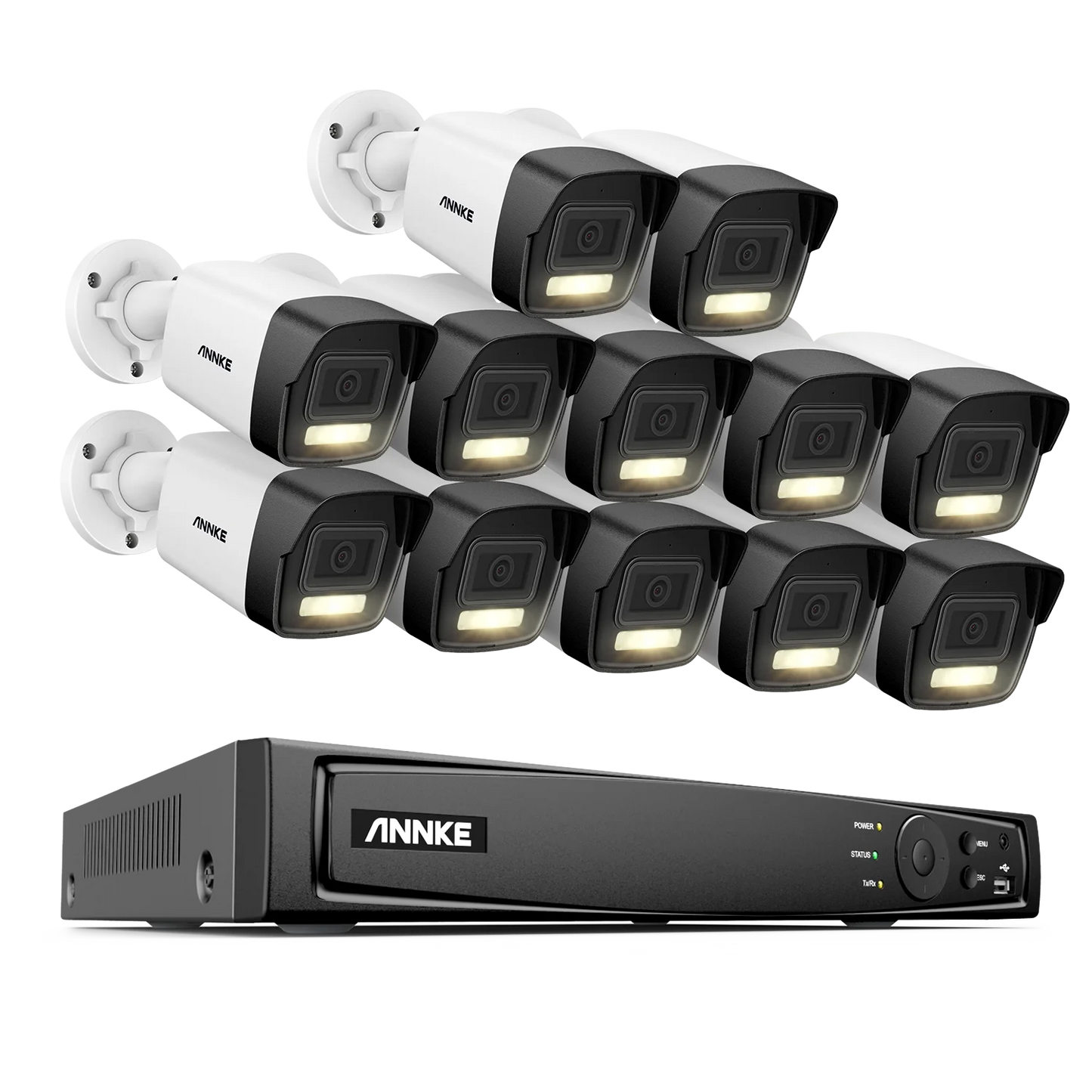

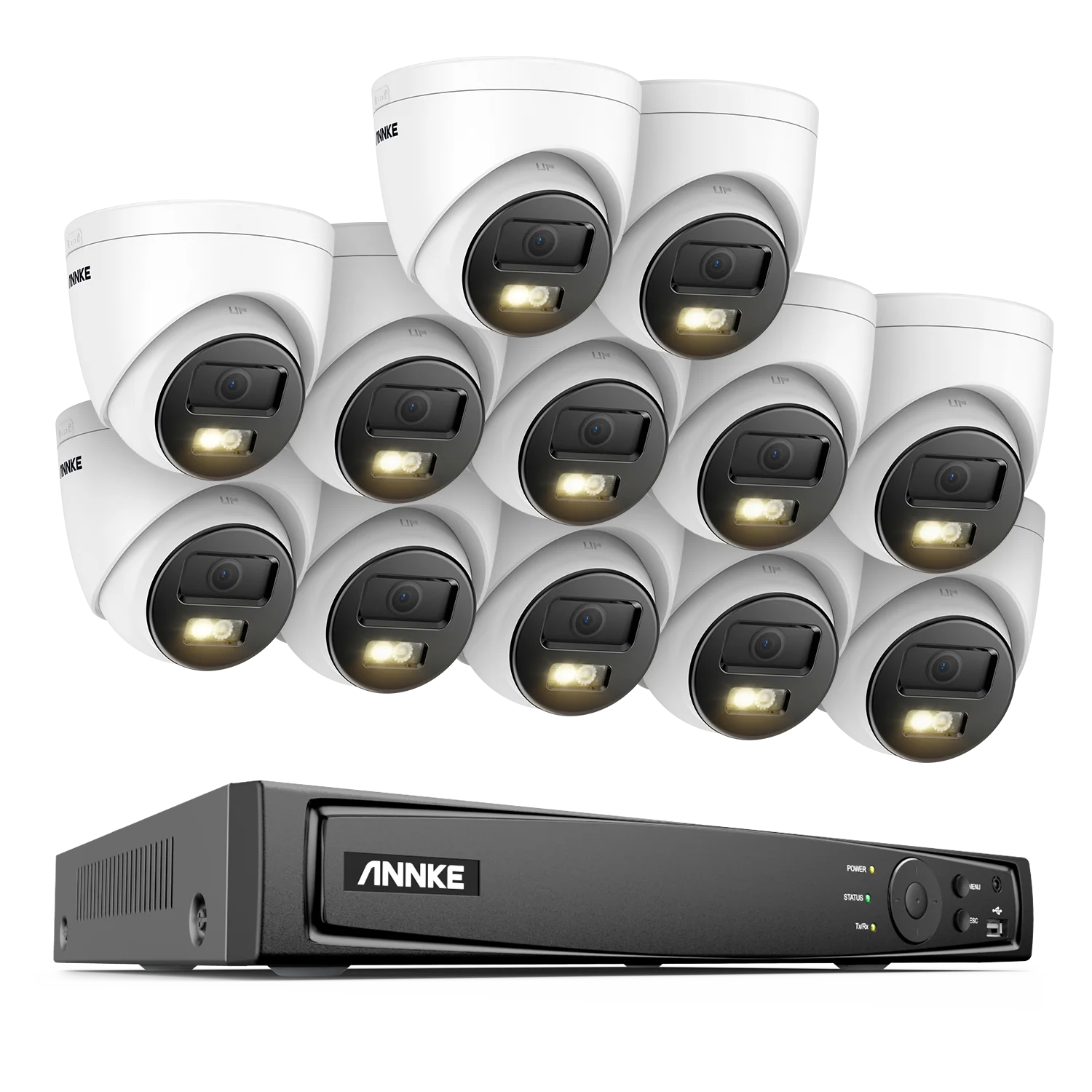

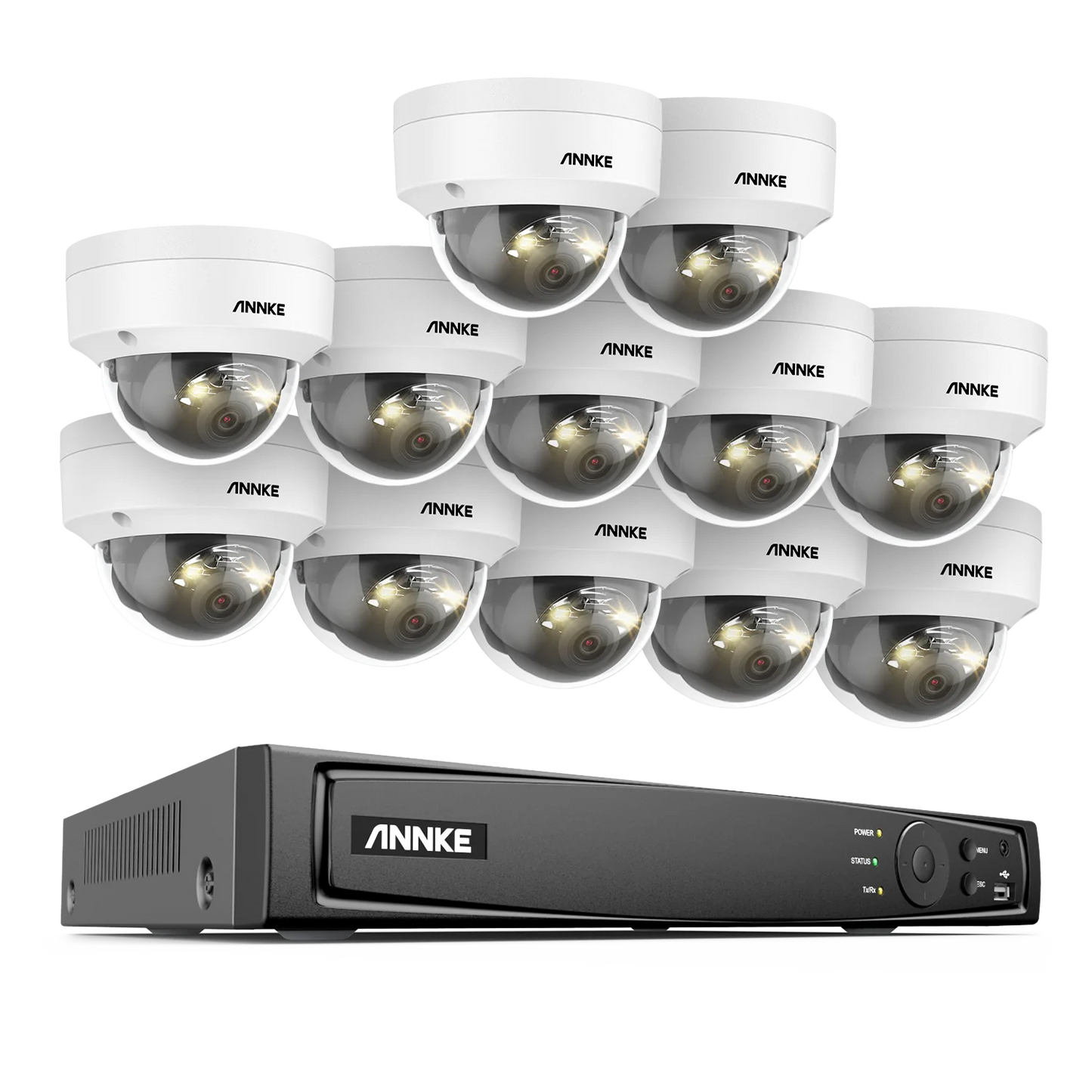

16CH NVR 12Pcs Camera

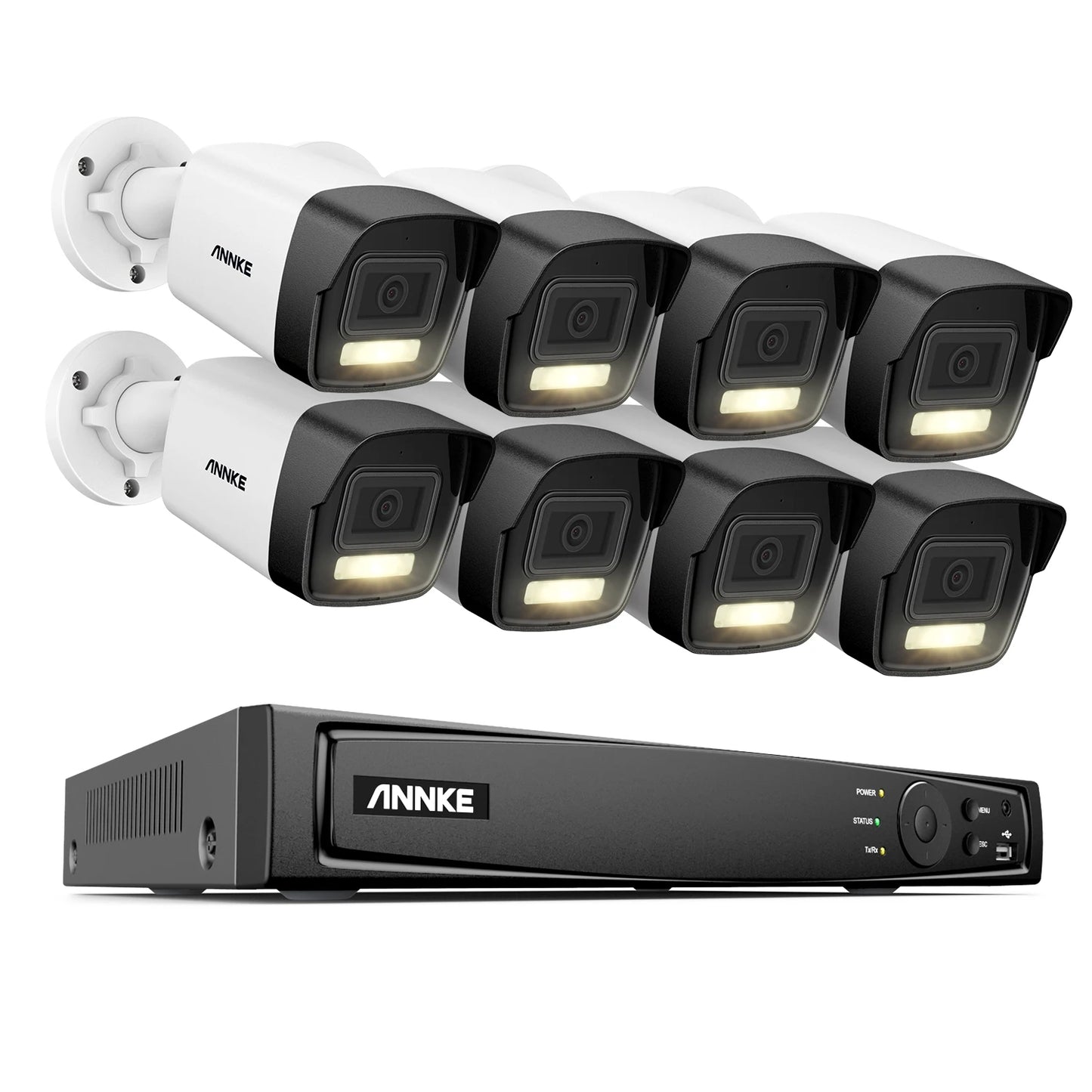

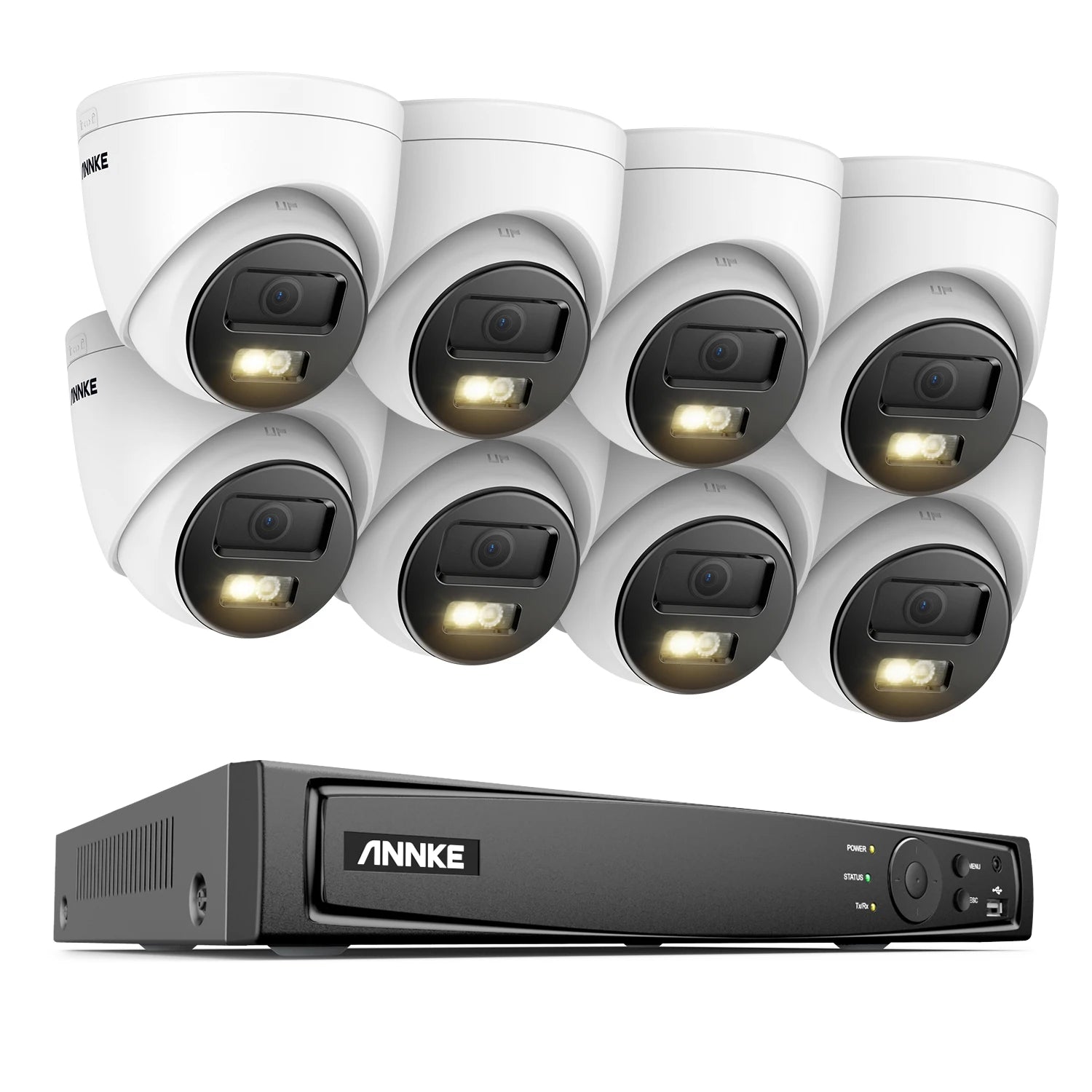

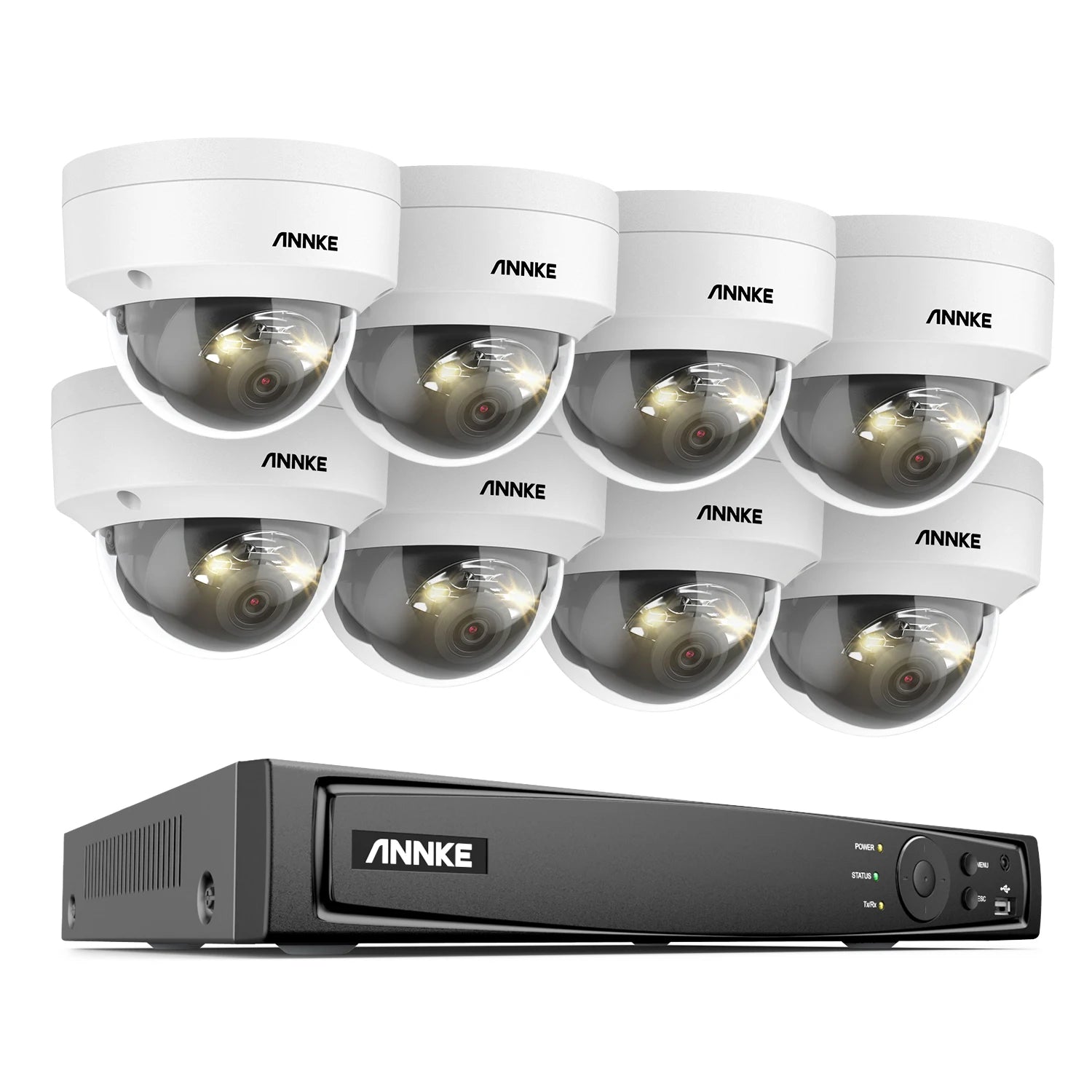

16CH NVR 8Pcs Camera
IP Camera | ||
Camera |
Image Sensor |
1/2.7" Progressive Scan CMOS |
Max resolution |
4096*3072(12MP) |
|
Main Stream |
50 Hz: 10 fps@4096*3072, 12.5 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720) |
|
Substream |
50 Hz: 12.5 fps (1280*720, 640*480, 640*360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 16 Mbps |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
Audio Input |
Built-in Microphone, record with audio |
|
Lens |
2.8 mm |
|
Min. Illumination |
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° |
|

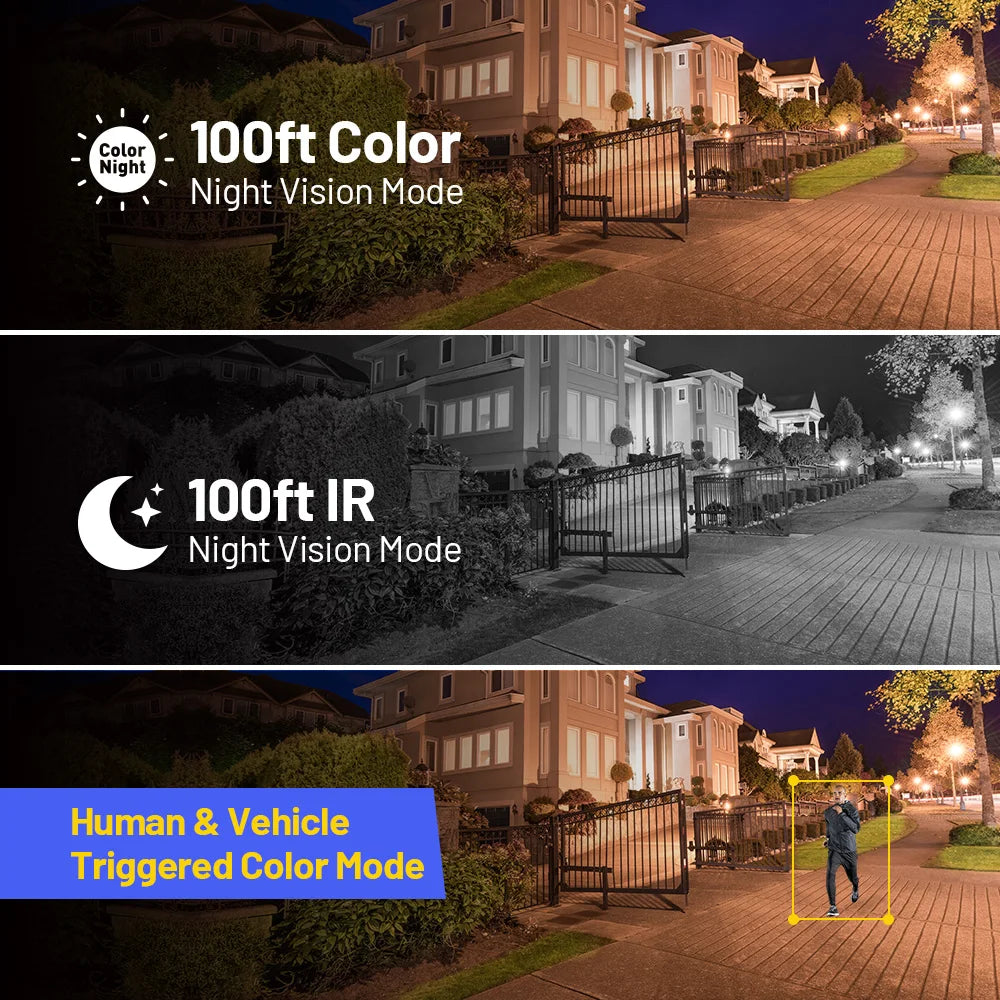

Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
Up to 30 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
|
API |
Open Network Video Interface Version 19.12 (Profile S, Profile T, Profile G) |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate mode, mirror, password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White & Black |
|
Storage |

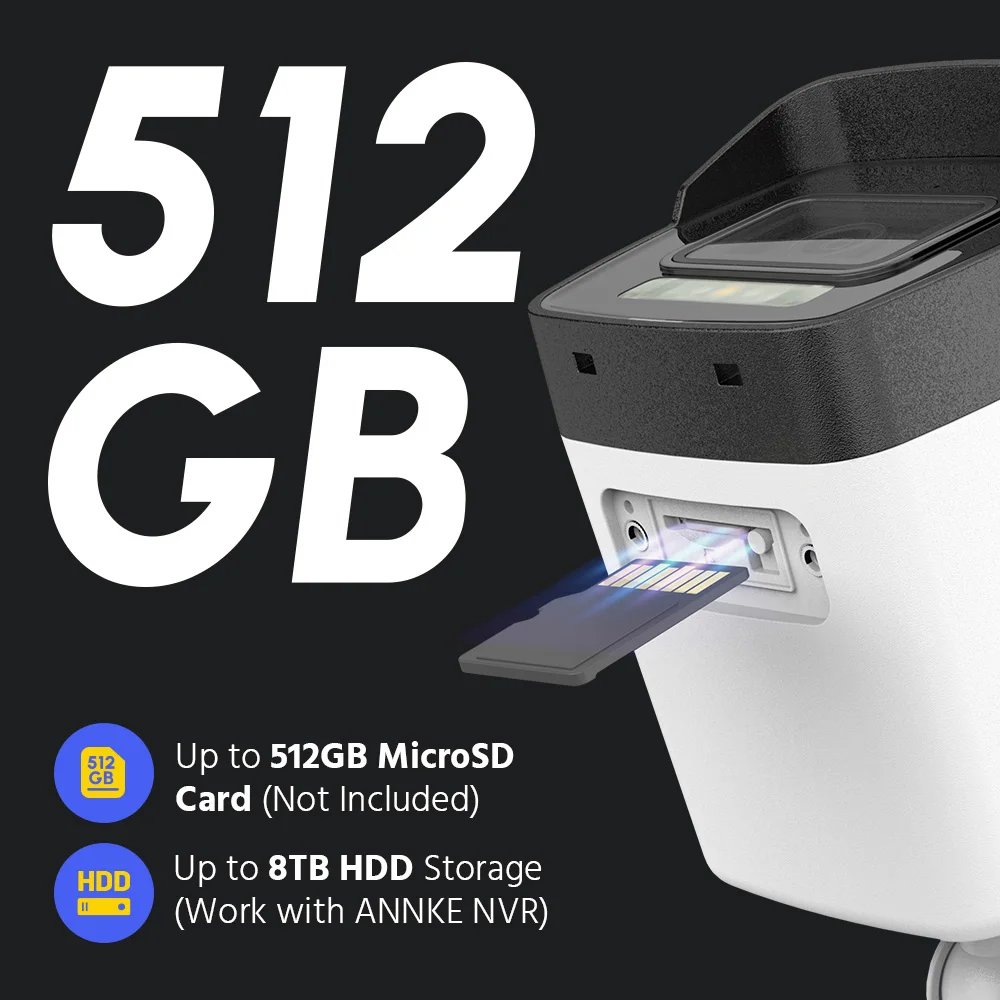

Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 |
|
Dimension (L X W X H) |
170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
|
Weight |
0.6 lb./285 g |
|

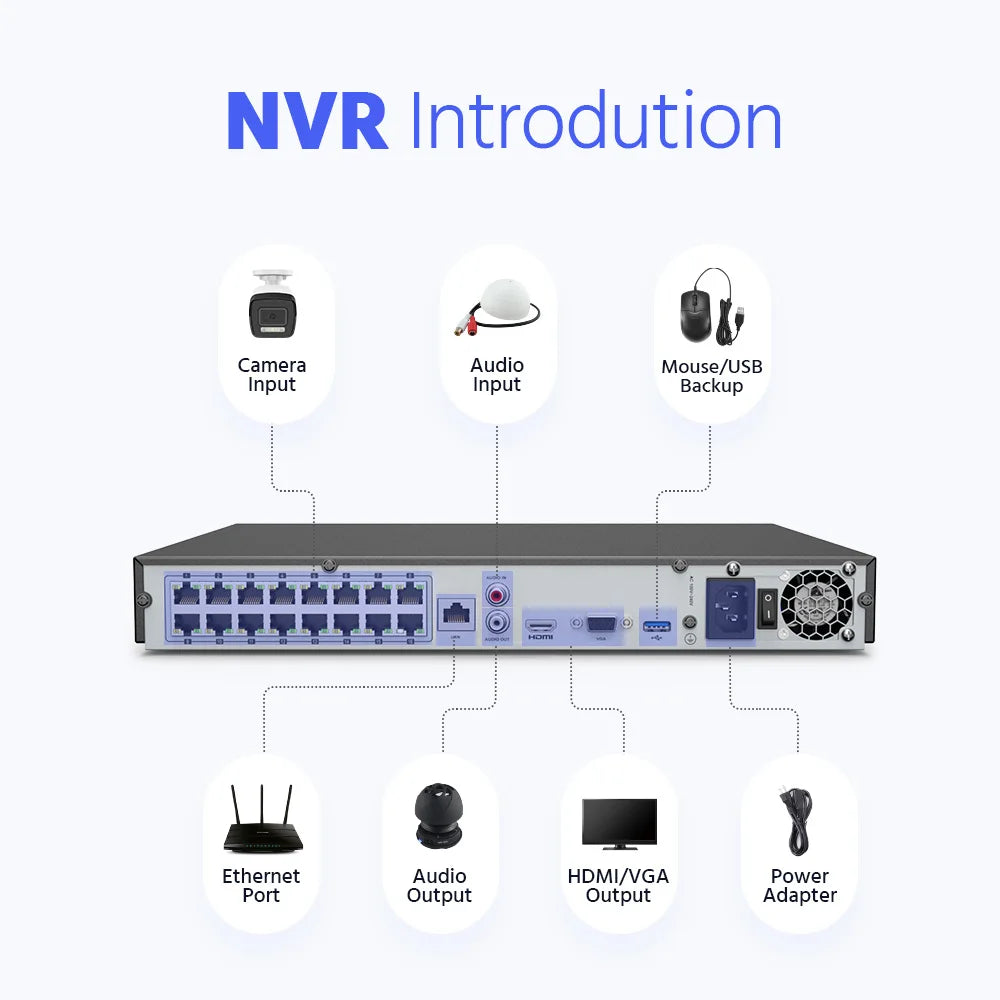

NVR | ||
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
16CH PoE |
|
Video Output |
HDMI up to 4K, VGA up to 1080p |
|
Audio Input/Output |
1/1 RCA |
|
Incoming/Outgoing Bandwidth |
160/80 M |
|
Max. Recording Resolution |
Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera) |
|
Max. Playback Resolution |
Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera) |
|
Max. Playback Channel |
16CH |
|
Max. Playback Capacity |
1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
|
Hard Drive |
HDD |
2 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity for each disk |
|
|
Network Interface |
RJ45 X1 (10/100/1000 M) |
PoE |
16, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
|
USB |
2X USB 2.0 |
|
Smart Function |
Deep learning |
16-ch Human and vehicle targets detection(Need IP camera support) |
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) | ||
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting |
|
General |
Operating Power |
AC 100-240 V |
Power Consumption |
≤15 W (Without HDD and PoE) |
|
PoE: Max. 25.5W for Single Port | ||
Working Temperature |
14 °F — 131 °F/-10 °C — 55 °C |
|
Dimensions (W X H X D) |
15.2” X 12.4” X 2.0”/385 X 315 X 52 mm |
|
Weight (Without Hard Disk) |
6.6 lbs./3 kg |
|
